Product Details
Place of Origin: CHINA
Brand Name: Fengzhaowei
Certification: CE/FCC/ROHS/PSE
Model Number: ZBK-90
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: To be discussed
Packaging Details: White box /per box 38.5*14.5*32.5/2.6kg/15pcs one carton 50*38*45/40kg
Delivery Time: 2-35work days
Payment Terms: T/T
Supply Ability: 1000 pcs per month
Name: |
Portable Alcohol Detecting Machine |
Language: |
Support Customization |
Printer: |
Printing All In One |
WIFI: |
Yes |
GPS: |
YES |
Power: |
Battery |
Weight: |
308g |
Name: |
Portable Alcohol Detecting Machine |
Language: |
Support Customization |
Printer: |
Printing All In One |
WIFI: |
Yes |
GPS: |
YES |
Power: |
Battery |
Weight: |
308g |

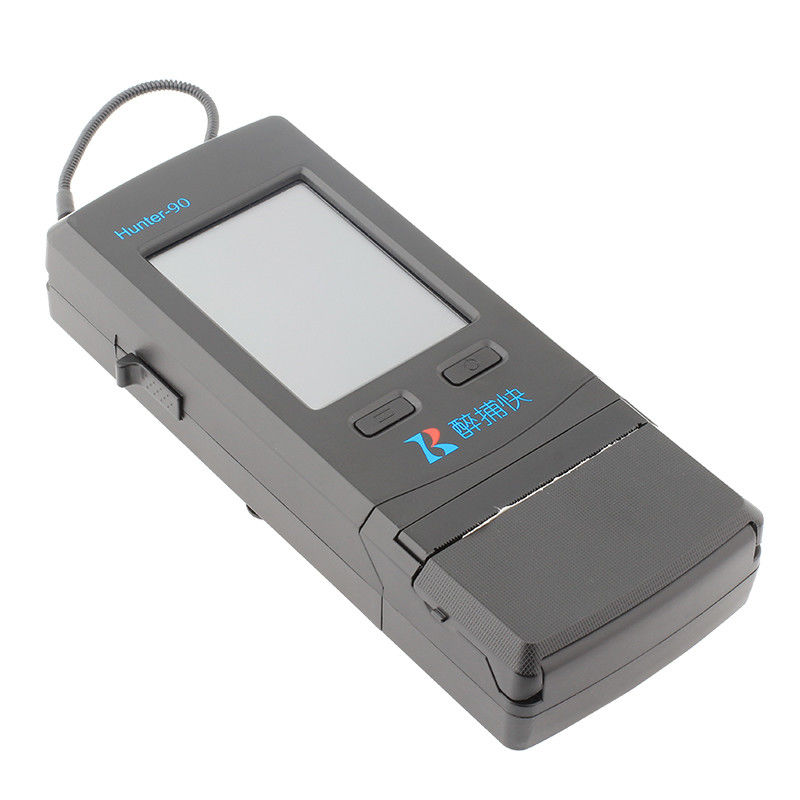

Embedded Printer Black Breathalyzer ZBK-90 High Precision Fuel Cell Sensors For For Police Use
Breath Alcohol Tester-X70
The device adopts one key type ejection blowpipe to avoid the operator from contacting the discarded blowpipe after the measurement is completed.
The device has its own USB interface, which can be directly connected to the computer, facilitating data transmission and instrument upgrading.
The handwriting of the paper printed when the equipment is working must meet the storage time of three years or more.
| Project | Indicators and parameters |
| Sensor | fuel cell alcohol sensor |
| Product standard | GB/T21254-2017 |
| Volume | 188 * 82 * 37mm |
| Weight of the machine (without battery) | about 308g |
| Battery | 7.4V/2000mAh rechargeable lithium battery (more than 500 times when fully charged) |
| External power supply | 12V/3A DC power supply |
| Output response time | about 5 seconds |
| Operating temperature range | - 10 ℃~50 ℃ |
| Storage temperature range | - 40 ℃~70 ℃ |
| Detection range | 0.00mg/100ml--550mg/100ml (BAC) |
| Detection accuracy |
0mg/-- 0.040mg/l (range ≤ 0.400mg/l)
|
|
0--10%(0.100mg/l＜measuring range≤2.000mg/l)
|
|
|
0--2x [standard gas concentration/2-0.9] mg/l [2.000mg/l＜measuring range≤2.500mg/l]
|
|
| Display mode | All Chinese (English optional) |
| Display | 3.2 inch full-color touch screen |
| Input mode | touch |
| Printer output | Chinese (English optional) |
| Computer interface | USB |
| Memory function | It can store 20,000 measurement results including date, time, tested driver's license number, number of police on duty (and GPS coordinates), and print any record at any time |
| Other functions | optional (1.GPS, 2.GPRS, 3.Bluetooth),GPRS real-time data upload, time synchronization support for Mobile and Unicom 2G (GSM/GPRS 850/900/1800/1900 MHz) |
