Product Details
Place of Origin: CHINA
Brand Name: Fengzhaowei
Certification: CE/FCC/ROHS/PSE
Model Number: Mr Black 3
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: To be discussed
Packaging Details: White box /per box 20.8*16.8*4.8/0.44kg/40pcs one carton 50*38*45/18kg
Delivery Time: 2-35work days
Payment Terms: T/T
Supply Ability: 3000 per month
Name: |

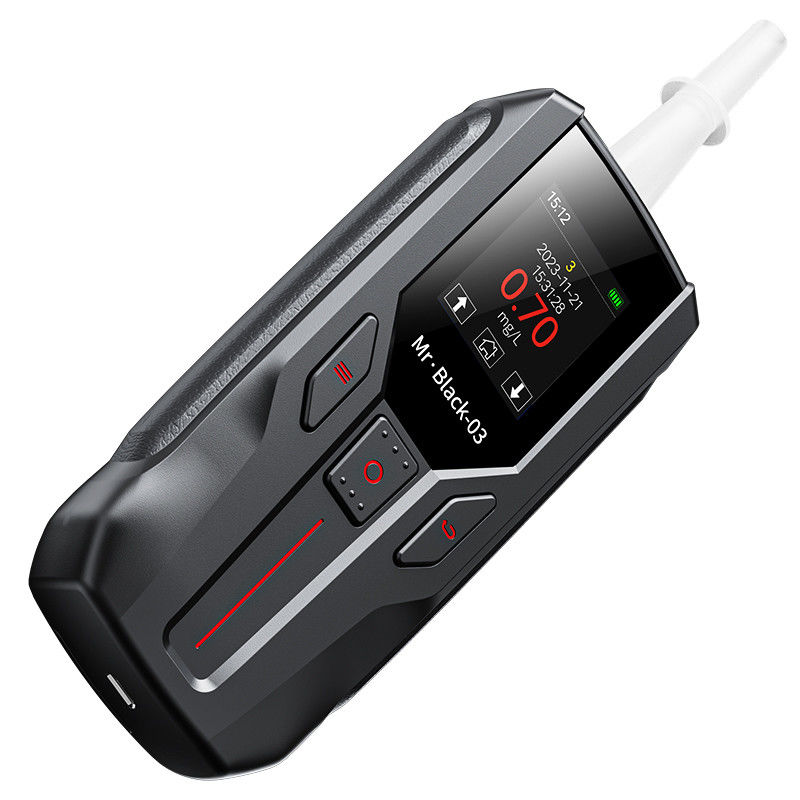

Black Electrochemical Fuel Cell Breathalyzer |
Battery: |
Lithium Battery |
Size: |
138mmX68mmX30mm |
Language: |
Customized |
Detection Mode: |
Contact + Non-contact |
Unit: |
Multiple Choice |
Name: |
Black Electrochemical Fuel Cell Breathalyzer |
Battery: |
Lithium Battery |
Size: |
138mmX68mmX30mm |
Language: |
Customized |
Detection Mode: |
Contact + Non-contact |
Unit: |
Multiple Choice |
Small size and easy to carry;
The company has complete independent intellectual property rights,and is a service-oriented enterprise integrating R&D, production and sales
| Project |
Indicators and Parameters |
|
| Alcohol sensor type | Electrochemical fuel cell alcohol sensor | |
| Range: | 0mg/100ml~630mg/100ml (breath alcohol concentration) | |
| Resolution | 0.1mg/100ml | |
| Indication error | Alcohol gas concentration range(C/(mg/100ml) | Error |
| C<0.400 | 士0.020mg/100ml | |
| 0.400≤C<1.000 | 士5% | |
| C≥1.000 | 士20% | |
| Indication repeatability | Alcohol gas concentration range (C/(mg/100ml) | Error |
| C<0.400 | 0.06mg/100ml | |
| 0.400≤C<1.000 | 0.06mg/100ml | |
| C≥1.000 | 6% | |
| Calibration cycle | 6 months | |
| Operating temperature range | -5°C~40°C | |
| Storage temperature range |
-20°C~70°C
|
|
| Blowing continuity detection | 2.5 seconds (flow: ≥ 20L/min) | |
|
Display
|
128*160 color screen
|
|
| Machine size |
about 138mm (length) X 68mm (width) X 30mm (thickness)
|
|
| Battery |
Rechargeable lithium battery
|
|
| Instrument weight |
about 140g (including battery)
|
|
| Double detection mode | contact + non-contact | |
| Query records |
10 test records
|
|
| Charging | type-C | |
| Language setting | Switch between Chinese and English | |
